 Introduction
 IR9703

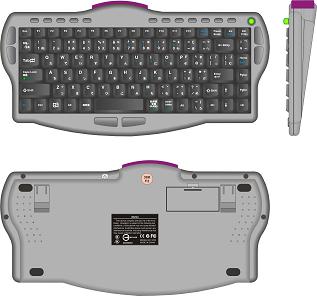

IR9703 wireless keyboard
contains one transmitter (keyboard unit) and one receiver
(receiver unit).
The transmit unit, wireless keyboard
unit, is a 88keys keyboard with 12 multimedia function
keys and 6 mouse buttons, the total 106keys, with one
or two Gyro sticks mouse pointers. The keys are all
in the standard full size with 4mm travel, membrane
key switch technology, and soft touch rubber dome feeling.
The 88keys to work for standard 104key's functions.
12 multimedia function keys
allow one shot lunch to Internet browser, activate CD
/ VD player, contro1ling the players, volume, and mute.
These keys are programmable by pushing the MENUĦ¨ key
to program (redefine) the function for every key. Two
scrolling buttons as scroll up and scroll down makes
the document up/down continuously, locate at the right
side of the keyboard and just below the mouse pointer.
The receiver unit, is a unit with a 150cm long cable
and two PS/2 heads (one head for the keyboard, one for
PS/2 mouse) for directly connect to the PC. The mouse
contains the combo ability with a PS/2 to serial port
conversion head, it can convert the PS/2 mouse to serial
PNP Microsoft mouse. This means the mouse interface
is a combination of Microsoft mouse and PS/2 mouse
The receiver unit accepts two types of IR data format,
one is parex special encoding format for keyboard and
mouse in 34ms data packs, another one is a regular remote
controller format, for instance, NEC remote control
format in 58.5-76.5ms data pack. The unit works for
notebook PC. Even the notebook PC has the different
interface from Desktop PC.
One set of R& L buttons locates at the upper left-hand
side of the keyboard, by using your left hand to operate
the R&L buttons and your right hand to operate the
mouse at the upper right hand side. Another set locates
at the beneath of center of keyboard, used for putting
the keyboard on table or laptop to typewrite. By using
your thumb to click the L or R buttons while index finger
to operator the mouse pointer of locating between G.B.H.
The
Models of Wireless Keyboards Unit
Wireless keyboard unit is defined
as a keyboard without receiver and any accessories
| Models |
Description |
| IR9703 -56-1 |
56 Khz, wireless
keyboard with 1 gyro stick mouse pointer. |
| IR9703 -56-2 |
56 Khz, wireless
keyboard with 2 gyro stick mouse pointer. |
| IR9703 -38-1 |
38 Khz, wireless
keyboard with 1 gyro stick mouse pointer. |
| IR9703 -38-2 |
38 Khz, wireless
keyboard with 2 gyro stick mouse pointer. |
| IR9703 -56-1-ID |
56 khz, wireless
keyboard with 1 gyro stick mouse pointer and 16
channel ID. |
| IR9703 -56-2-ID |
56 khz, wireless
keyboard with 2 gyro stick mouse pointer and 16
channel ID. |
| IR9703 -38-1-ID |
38 khz, wireless
keyboard with 1 gyro stick mouse pointer and 16
channel ID. |
| IR9703 -38-2-ID |
38 khz, wireless
keyboard with 2 gyro stick mouse pointer and 16
channel ID. |
The
Models of Receiver Unit (for IR wireless keyboards)
The receiver unit is defined herein as a receiver unit
only
| Models |
Description |
| IR9702 -56-STD |
56 Khz, IR receiver
with PS2 mouse and PS2 keyboard and combo serial
mouse. |
| IR9702 -38-STD-ID |
38 Khz, IR receiver
with PS2 mouse and PS2 keyboard and combo serial
mouse. |
| IR9702 -56-STD-ID |
56 Khz, IR receiver
with PS2 mouse, PS2 keyboard, combo serial mouse
and 16 channel ID. |
| IR9702 -38-STD |
38 Khz, IR receiver
with PS2 mouse, PS2 keyboard, combo serial mouse
and 16 channel ID. |
| IR9702 -56-EXR |
56 Khz, IR receiver
with PS2 mouse, PS2 keyboard, combo serial mouse,
an external standard PS2 keyboard, and standard
PS2 mouse to system . |
| IR9702 -38-EXR |
38 Khz , IR
receiver with PS2 mouse, PS2 keyboard, combo serial
mouse, an standard external PS2 keyboard, and
standard PS2 mouse to system. |
| IR9702 -56-EXR-ID |
56 Khz, IR receiver
with PS2 mouse, PS2 keyboard, combo serial mouse,
an external standard PS2 keyboard, and standard
PS2 mouse with 16 channel ID. |
| IR9702 -38-EXR-ID |
38 Khz, IR receiver
with PS2 mouse, PS2 keyboard, combo serial mouse,
an external standard PS2 keyboard, and standard
PS2 mouse with 16 channel ID. |
The
Models of ODM Receiver IC
The following Receiver ICs are ODM products for customers
to build into their motherboard
| Models |
Description |
| RRR-90307 |
Standard receiver
IC for 56khz/38khz. PS2 keyboard and mouse with
serial mouse interface. |
| EXR90618 |
Standard receiver
IC for 56khz/38khz. PS2 keyboard and mouse with
serial mouse interface. With an external standard
keyboard and mouse . |
| RID-90708 |
Standard receiver
IC for 56khz/38khz. PS2 keyboard and mouse with
serial mouse interface. With an external standard
keyboard and mouse and 16 channel ID. |
| ATC-90502 |
All_to_com receiver
IC, the IR data from Mouse and keyboard. Regular
remote controller, are all re_encoded with a identify
bit and all sent to com. Port only. |
| ASP-90708 |
All separate
receiver IC, the IR data from Mouse and keyboard.
Regular remote controller, are sent to PS2 mouse
port, keyboard port, com Port respectively. |
1. Standard Model :
The standard model is a retail package .
2. "All_to_com"
Model: The data from wireless keyboard
unit (IR_9703) , wireless mouse remote controller unit
(IR_9708) , regular remote controller unit are received
and decoded to send all of the data with a identify
bit to the com port .
3. "All_separate"
Model: The data from wireless keyboard
unit , wireless mouse remote controller unit, regular
remote controller unit are received and decoded and
send to keyboard port, ps2 mouse port, and serial com
port respectively.
4. External Keyboard ,
Mouse Model: The receiver unit have
the ability to connect an standard keyboard and mouse
to work simultanoursly with IR_keyboard and IR_Mouse..
5. User ID Model :
Wireless keyboard with user ID , the user ID is a software
ID , enable to remote setting the ID .
Product
Models:
| Items |
IR9703-56 |
IR9703-38 |
| IR data transmission
carrier |
56khz |
38khz |
General
Specification of IR9703:
| Models |
Specification |
| Transmission
distance |
14 meters in
line, 8meter at 60-degree angle, one meter at
140-degree angle .
 |
| Operation angle |
Over 170 degree
at one meter distance possible, 360degree possible
in a close room. |
| IR data format |
For both
1. Parex 34ms data pack format.
2. NEC 76.5ms regular data format |
Specifications
of Keyboard Unit IR9703: (PC version)
| Items |
Specification |
Unit
and Remark |
| Key number |
88 |
keys |
| Multimedia keys |
12 |
keys |
| Key travel |
4 |
mm |
| Key switch |
Membrane |
3 lays |
| Key touch |
Soft tactile
Rubber dome. |
. |
| Keypitch |
Standard pitch
,19.05 |
mm |
| Mouse pointer
technology |
Patented gyro
stick pointer |
. |
| Mouse pointer |
1 or 2 (option) |
PCs |
| Mouse button |
2 sets R_,L_
buttons |
buttons |
| Scroll button |
Scroll up, scroll
down buttons |
buttons |
| IR LED |
950u |
2pcs |
| Battery |
AA size |
PCs |
| Battery life |
380hours continuos
use , alkaline |
Hours |
| Dimension |
340 x 170 x
28 |
mm |
| Net Weight |
590 |
grams |
Specifications
of Receiver Unit IR9703
| Items |
Specification |
Unit
and Remark |
| Indicator |
Num , Caps,
Scroll , IR data in LEDs |
4 LEDs |
| IR receiver
photo sensor module |
Temic 1756 (56khz)
or 1738 (38khz)
Kodenshi pic26045LM (56 kHz)
Pic (38khz) |
. |
| Work for |
For all of following
devices
1. IR9703 keyboard unit
2. IR9708 wireless mouse remote controller
3. NEC format regular remote controller |
. |
| Cable length |
150 cm with
2 split PS2 header |
cm |
| Interface |
For both Desktop
and Notebook PC
PS/2 keyboard and mouse port |
. |
| Conversion
head |
PS/2 to AT (keyboard)
PS/2 to serial mouse (mouse) |
. |
| External device
bridge |
External port
for connecting an extra standard keyboard and
mouse. |
Option |
| Channel ID |
15 user Communication
channels |
Option |
| Dimension |
32 x 68 x 28 |
mm |
| Net weight |
110 |
grams |
ODM
Design
IR9703 has several ODM versions. We provide the ODM
services for customers, please contact us for change
the key code, the key legends, key colors, and some
other special needs.
Features
• Works for both desktop
PC and notebook PC
• Wild range angle and long distance operation.
• Long battery life.
• Two mouse pointers.
• 2 sets of R & L mouse buttons.
• Scroll up/down buttons.
• Standard pitch, full size, 4mm long travel
keys.
• Soft touch key feeling.
• 380 Hours alkaline battery life.
• Battery low indicator.
• 12 one shot Multimedia keys.
• Ergonomic design.
• Beautiful outward appearance.
• Using Gyro Stick technology.
