 Introduction

Wireless mouse remote control contains many function keys such as scrolling button, page down, page up, and drawing button etc. 11 keys of multimedia hot keys can be defined as any application processing (e.g. all of the .EXE) as users wishes. Wireless mouse remote control can be equipped with laser pointer in order to be used for multimedia presentation.

The CD and VCD players are built inside the wireless mouse remote control . You can control the functions of the play, backward, forward, eject, volume with high and low, and mute etc. when you want to listen the CD, but do not need to open the screen. The OSD indication of wireless mouse remote control lets you more easily to operate and control the VCD when you look at. You do not need to open a lot of windows on the screen to adjust the functions. You do not need to endure the remote control with inefficient cursor any more.

 Function Brief of Each Type

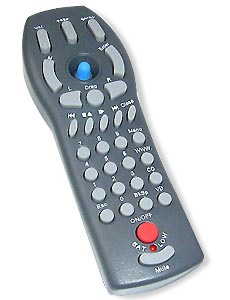

1. IR9708l : IR9708 is an IR remote control handhold unit, it equips with 34 key buttons and one pointing device (gyro stick) . IR9708 has a room inside to have a laser pointer.
The code of all buttons can be re-defined by changing firmware inside of receiver IC by ODM service.





 Specification

Battery life Approximate 430 hrs alkaline battery
Battery Power management Auto sleeping while not use
Physical characteristics Dimension: 170.65mm x 60.5mm x 38.3mm
Weight 108.5 grams (without battery)
Driver Multimedia and scroll mouse driver with zooming function
Receiver cable length Recriver to PS/2 KB connector
175 cm

PS/2 KB connector to PS/2 MOUSE connector
25 cm
Pointing device UseGyro Stick technology
Pointing interface PS/2 and Serial interface(option)
Scrolling function Compatible with scrolling mouse and IBM PC
Power supply Transmitter:
2 x AA size (1.5V) batteries

Receiver :
5 +/- 0.5 V
Weight transmitter
140 grams with Batteries

Receiver
110 grams
Life One year warranty



 Features

• It is a portable and easy used device.
•Use Infra-Red technology and distance up to 8 meters.
• Use Gyro-Stick technology for easily scrolling up or down .
• Ergonomics design for comfortable hand hold .
• Low power consumption with high efficiency power management for long life operation.
• IR 9708 can be used for business presentation, proceed the subject training, One-Touch .
• Operation let you roaming Internet, CD/VD play control.
