Introduction

Wireless mouse remote control contains many function keys such as scrolling button, page down, page up, and drawing button etc. 11 keys of multimedia hot keys can be defined as any application processing (e.g. all of the .EXE) as users wishes. Wireless mouse remote control can be equipped with laser pointer in order to be used for multimedia presentation.

The CD and VCD players are built inside the wireless mouse remote control . You can control the functions of the play, backward, forward, eject, volume with high and low, and mute etc. when you want to listen the CD, but do not need to open the screen. The OSD indication of wireless mouse remote control lets you more easily to operate and control the VCD when you look at. You do not need to open a lot of windows on the screen to adjust the functions. You do not need to endure the remote control with inefficient cursor any more.

General description

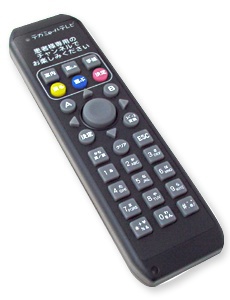

PT8205 is a remote controller unit , with infrared wireless and RJ9 phone jack (wire) to communication data , the IR is 38KHZ continuous type , format2 . It has thirty-five keys buttons, and a disc mouse , soft touch buttons and 360-degree cursor moving control .

Operation and storage condition

Items	Specification
Operating temperature range	15 to 45 degree C at normal humidity, normal pressure.
Storage temperature range	10 to 55 degree C at normal humidity, normal pressure
Operating humidity range	20% ~ 90% relative humidity, none condensing
Storage humidity range	5% ~ 95% relative humidity, none condensing
Gyro stick applied force range	Operating force 0 - 180 g Actuating force 5 -60 g Max applied force 1 kg

Product specification

• Mechanical specification

Items	Specification
Key number	35 keys
Key travel	1.2 mm
Key switch	Carbon
Key touch	Soft tactile Rubber dome
Key pitch	15 mm
Mouse pointer technology	gyro stick pointer.
Dimension	205 x 57 x 26 mm
Net Weight	110g
Enclosure Material	Material: ABS
Color	Black

• Electrical specification

Items	Specification
Supply Voltage	2 AAA size battery
Control distance tested under Rpc728sj and TS0P1738	7meter at 120-degree angle 1meter at 170-degree angle 10 meters in line of max. Typical: 7 meter
Operation angle	Horizontal: +60° (7meter) Vertical: +30°(7meter)
Operation current	Less than 40mA
Quiescent current	Less than 100uA
IR LED	TASA7600 * 1pcs
Battery	AAA size
Battery life	80 hours continuous use.
Receiver photo module	TSOP1738
IR carrier and format	38khz, format2
IR Repeat delay(key press down)	453ms +1ms
IR Repeat period	72ms +1ms
